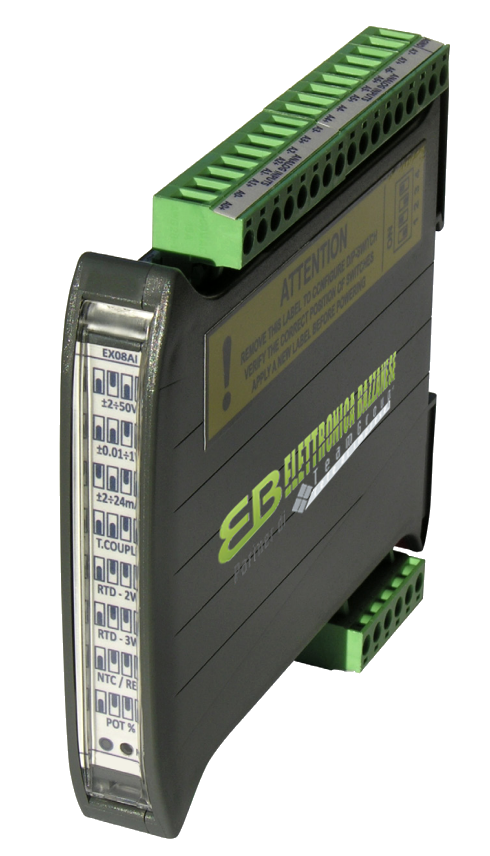

Compact module with 8 universal analog inputs, Modbus RTU protocol
- I/O interface – remotable on RS485 fieldbus
- 8 analog inputs, 16 bits, isolated and configurable
- Voltage reading from μV range up to ±50V
- Current reading from μA range up to ±24mA
- Direct resistance reading up to 130kΩ
- Thermocouples with internal / ext. compensation
- RTD thermal resistances, 2 / 3 wires connectionNo
- channels are lost in 3 wires connection
- Direct temperature reading with NTC sensors
- 12 bits channel with internal temperature sensor
- RS485 serial port with high speed (1Mb/s max)
- Modbus RTU protocol, configurable over RS485
- CoDeSys libraries for configuration and use
- PC tool for configuring and testing modules
- Compact dimension on 17.5mm of DIN rail
odbus RTU protocol over a high-speed RS485 serial bus. The modules can be installed even hundreds of meters away, allowing for simplified wiring and reduced installation costs.
Equipped with galvanic isolation on both input and output ports. The static outputs, implemented with high-current MOSFETs, are protected against permanent short circuits, overvoltage, and overtemperature.
Visual indicators with high-brightness LEDs show the status of all I/Os, including a power-on self-test function.
Includes a programmable timer to force outputs into a safe (inactive) state in case of communication loss.
Configurable on the fieldbus using direct Modbus commands, library function blocks, CoDeSys, and PC-based software.
Easily integrated into CoDeSys “PLC Configuration” via configuration files.
Modbus protocol extensions allow I/O updates at 1 Mb/s in a single frame exchange.
